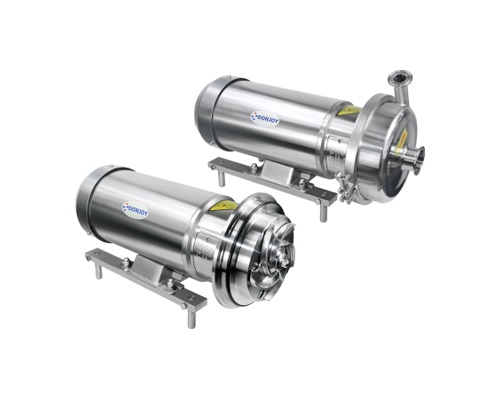

Centrifugal Pump S-KS Series แบบใบพัดเปิด

Centrifugal Pump open impeller S - KS series

The pump is foraged and with stainless steel motor cover. With sanitary and cost-effective design, it is ideal for dairy, beverage, food processing, pharmaceutical and fine chemical industries.

Operating Principles:
Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor. Technical specifications

Technical specifications

Max. flow: 150 m3/h

Max. head: 70H(m)

Max. pressure: 7 bar/99 PSI

Max. temperature: 120 ℃

Max. rev.: 3600 min-1

Design and features features:

Casing manufactured with cold-formed plate.

Open impeller and close impeller manufactured with stainless steel investment casting.

Adjustable stainless steel legs.

Pump designed according to 3A sanitary standards. IEC B34 motors, IP 55, F-class insulation,50HZ 60hz

Mechanical seal in C/St. S and SiC/Sic Gaskets in FPM (Viton) and PTFE

Connections: Clamp, thread, flange, DIN,SMS,RJT,IDF

Motor: 2900,1450,3600 rev./min., 50HZ,60HZ

Parts in contact with media: AISI 316L/AISI304

Other parts AISI 304

Gaskets (standard): EPDM (FDA approval)

Mechanical seal (standard): SIC/SiC/EPDM

Inside surface finishing: Ra≤0.8 um

Outside surface finishing: Sandblast or Mirror polished

Centrifugal pump S-KS Series

Application

◆S-KS series centrifugal pump, is made of full stainless steel for motor and pumpt, it's clean exterior and interior design, and also can be online high pressure water gun cleaning, IP67 degree of protection, maximum of IP69.
◆The pump has high lift, low noise, high flow, zero dead angle, efficient design features with using high purity of the parent material. Meet ASME/BPE and EHEDG standards requirements, and certified with 3A-02-10,CE-MD/06/42/EC.
◆This pump is ideal for high purity process piping systems and workplaces, such as bio-pharmaceuticals, food and beverage, wine, fine chemical industry and other fields.

Technical specifications

Maximum Head: 70m³ / H
Maximum temperature: 130 ℃
Material: ASTM 304,316L, 1.4301,1.4404
Inside surface: Ra0.8μm (standard) 0.5μm (option), electro-polishing, mechanical polishing
Connection: clamp, thread, flange, DIN / SMS / RJT / ISO / ASME BPE
Mechanical seal design: single seal, double mechanical seal (option), SIC / C, SIC / SIC (option)
Certificate: 3-A-02-11, CE-MD / 06 / 42EC, FDA177.2600

A variety of motor options:

1) Wide voltage efficiency motors IEC EN IE2 efficiency rating (equivalent to China two energy efficiency), PTC thermistor.
2) Explosion - proof motor
3) Inverter motor - Voltage: AC 220V, 380V, 460V, 690V. 50HZ, 60HZ

Application

Technical specifications

Maximum Head: 70m³ / H
Maximum temperature: 130 ℃
Material: ASTM 304,316L, 1.4301,1.4404
Inside surface: Ra0.8μm (standard) 0.5μm (option), electro-polishing, mechanical polishing
Connection: clamp, thread, flange, DIN / SMS / RJT / ISO / ASME BPE
Mechanical seal design: single seal, double mechanical seal (option), SIC / C, SIC / SIC (option)
Certificate: 3-A-02-11, CE-MD / 06 / 42EC, FDA177.2600
A variety of motor options:
1) Wide voltage efficiency motors IEC EN IE2 efficiency rating (equivalent to China two energy efficiency), PTC thermistor.
2) Explosion - proof motor
3) Inverter motor
Voltage: AC 220V, 380V, 460V, 690V. 50HZ, 60HZ
