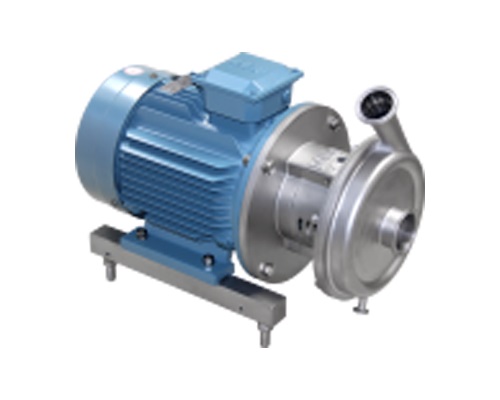

Centrifugal pump-KS Type

Working principle

Housed inside the casing, the impeller rotates in conjunction with the pump shaft. The impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy. This pump can't be reversible, even a simple reversal of the direction of rotation is not allowed. The direction of rotation is clockwise when the pump is viewed from the back of motor.

Technical specifications

Maximum Head: 150m³ / H
Maximum temperature: 130 ℃
Material: ASTM 304,316L, 1.4301,1.4404
Inside surface: Ra0.8μm (standard) 0.5μm (option), electro-polishing, polishing machine
Connection: thread, flange clamp, DIN / SMS / RJT / ISO / IDF / ASME BPE
Mechanical seal design: single mechanical seal, double mechanical seal (option), SIC / C, SIC / SIC (option)
Certificate: 3-A-02-11, CE-MD / 06 / 42EC, FDA177.2600
A variety of motor options:
1) Wide voltage efficiency motors IEC EN IE2 efficiency rating (equivalent to China two energy efficiency), PTC thermistor.
2) Explosion - proof motor
3) Inverter motor
Voltage: AC 220V, 380V, 460V, 690V. 50HZ, 60HZ
