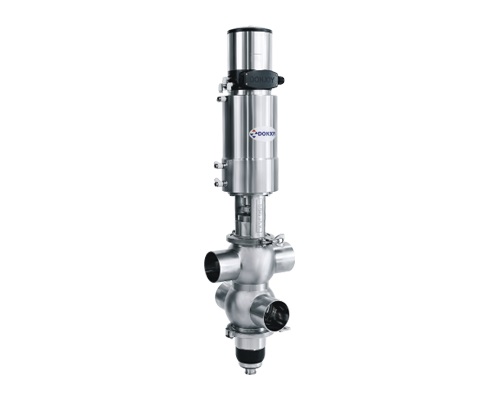

Mixproof valve / double seat valve
.jpg)
Applications
◆The mixproof valve is widely used in fluid processing technology, especially in the beverage, dairy industry applications.
◆Mixproof valve is a high degree of double-seal valve. There are two models that one is the valve chamber outside with the self-cleaning and one is cleaning fluid valve chamber with cleaning guidelines. Through the interface between two fluids, this system can be implemented in two body synchronization process, preventing the possibility of contaminating materials. Discharge chamber and a leak detector can improve the system through the valve seat for cleaning.
Technical specifications
●Size:DN40-1.1/2"to DN100-4"
●The valve is equipped with a normally closed pneumatic actuator
●Forged ball valve body
●If there is a gush of fluid leaks from bottom of valve tube, you can determine whether the seal is damaged
●Easy to remove( just removing the clamps is enough)
●Welded connection (mm or inch)
●Balance Protection Design
●Max.Operating Pressure：10bar
●Min.Operating Pressure：Absolute vacuum
●Working temperature：-10℃ - 130℃(140℃ For short periods or disinfection)
●Certificate：3-A-85-03，PED/97/23/EC,FDA177.2600 ●Compressed air pressure：5bar-7bar
●Gas connection：R1/8"(BSP)
