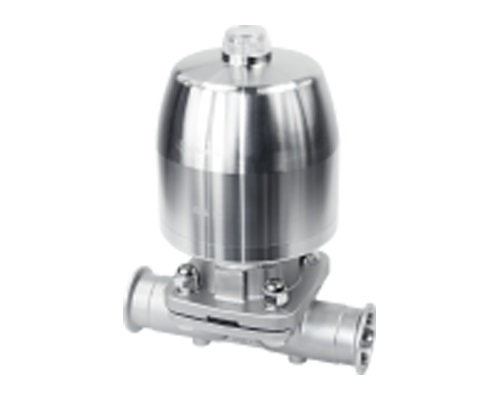

Diaphragm Regulating Valve
Applications
Diaphragm regulating valves, are mainly used in biopharmaceutical fluid control system. The design of valve is completely empty without dead angles, and the part contacted with media is high purity stainless steel and PTFE material, so it is very suitable for high purity requirements of processing piping systems. The body structure has a variety of forms and combinations (Please refer to the DONJOY diaphragm valve data).
Technical Specifications
Analog input: 0/4-20mA, 0-5/10V
Power: DC24V ± 10%
Protection: IP68 rating
Support for manual operation
One-touch auto-tuning function
Size: 1"-4", DN25-DN100
Material: 1.4435NB2, 316L, 1, .4404, ASME BPE 316L
Highest Temperature: -30 to 150 ℃ (Depending on seal material) (Stainless steel actuators)
Highest Temperature: -30 to 130 ℃ (Depending on seal material) (Plastic actuator)
Maximum Pressure: Unidirectional (DELTA P = 100%)
Normally closed rubber 8bar, PTFE 6bar (Option)
Normally closed rubber 6bar, PTFE 4.5bar (Standard)
Normally open and double acting rubber 8bar, PTFE 6bar
