Mini Diaphragm Valve
- หมวดหมู่ : Bio-pharmaceutical Diaphragm Valve
- รหัสสินค้า : 000356
รายละเอียดสินค้า Mini Diaphragm Valve
Mini Diaphragm Valve
Various Combinations Diaphragm Valve
The structures of valves have T-type,L-type, U-type, direct-way, multi-ports way, etc. It is mainly used in liquid sampling, biological systems, laboratories and other projects .
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing time can be up to 150 million life in 3 bar working pressure.
●Size: 1/4"-3/4"，DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM 8bar, PTFE 6 bar(Option)
EPDM 6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar, PTFE 6 bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Cast Body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Operations: Manual and pneumatic

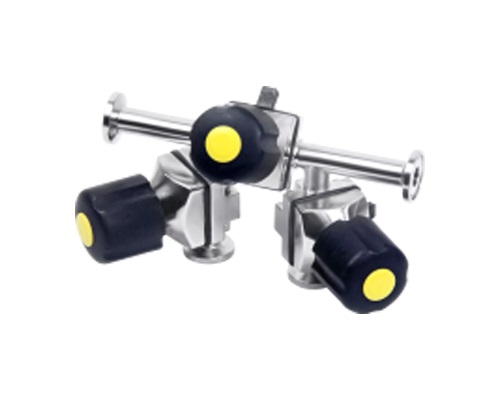

Mini Multiport Diaphragm Valve
Mini Multiport Diaphragm Valve, is mainly used in liquid sampling, biological systems, laboratories and other projects. Valves have a dead zone = ≤3D
●Size: 1/4"-3/4", DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
●Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM8 bar,PTFE 6 bar(Option)
EPDM6 bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar, PTFE 6 bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Cast Body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Operations: Manual and pneumatic
.jpg)

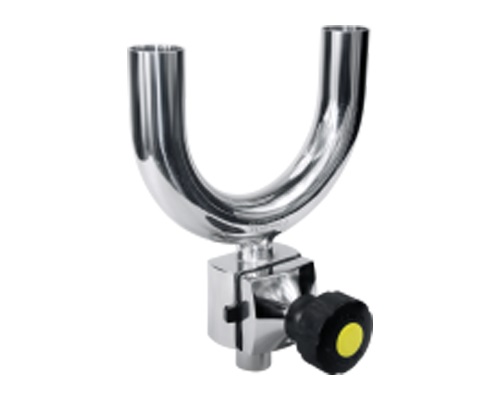

U-type Three-way Mini Diaphragm Valve
●Size: 1/4"-3/4", DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM8bar, PTFE 6 bar(Option)
EPDM6bar, PTFE 4.5 bar(Option)
Double action EPDM 8bar, PTFE 6bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Cast Body: 1.4404/316L
●Connection : Clamp, Weld, Thread, Flange
●Operations: Manual and pneumatic

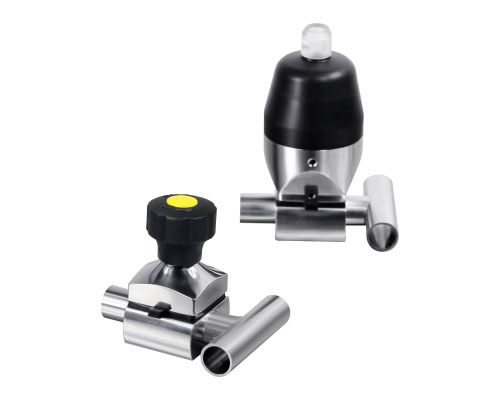

Mini Three-way Diaphragm Valve
●Size: 1/4 "-3/4", DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC, 3A/54-04/1580, FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM8 bar, PTFE 6 bar(Option)
EPDM6 bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar, PTFE 6 bar
●Assembling different actuators can meet higher pressure rating
●Forged Body: 1.4404/316L/1.4435 BN2
●Cast Body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Operations: Manual and pneumatic

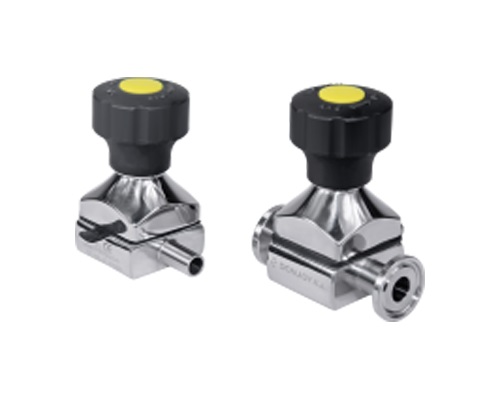

Mini Manual Diaphragm Valve
It is mainly used in liquid sampling, biological systems, laboratories and other projects
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing times can be up to 150 million life in 3 bar working pressure.
●Size: 1/4 "-3/4", DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM8bar, PTFE 6 bar(Option)
EPDM6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar，PTFE 6 bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Casting the body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Operations: Manual and pneumatic
Mini Pneumatic Diaphragm Valve
The structures of valves have T-type,L type, U-type, direct-way, multi-ports way, etc. It is mainly used in liquid sampling,biological systems, laboratories and other projects .
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing time can be up to 150 million life in 3 bar working pressure.
●Size: 1/4"-3/4"，DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM 8bar, PTFE 6 bar(Option)
EPDM 6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar, PTFE 6 bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Casting Body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Pneumatic actutors are suitable for body of direct-way, three way, multiport, weld parts, tank bottom valve
