รายละเอียดสินค้า Lobe Pump / Rotary Pump
◆The pump is a positive displacement lobe rotor pump designed according to USA 3A standard.
◆The equipment is processed with USA 3A to a very strict hygienic requirement.
◆The pump is suitable for transfering viscous and low-viscous media in the food-processing,cosmetics and pharmaceutical industries.
There are three jacket designs: periphery heat jacket,surface heat jacket and complete heat jacket. It is suitable for high viscosity fluid, such as chocolate,syrup, candy and etc. It will avoid freezing, deterioration caused by temperation deference.
◆ Maximum flow: 90m3 / H
◆ Maximum pressure: 20bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 750 rpm
◆ Material: ASTM 316L, 1.4404
◆ Inside surface: Ra0.8μm
◆Lobe pump with built-in safety valve effectively reduces the possibility of pump breakdown when pipeline pressure exceeds the safety valve during transportation which caused by other equipments' failure.
◆Features: Relief valve automatically opens when the pressure exceeds the setting pressure, it can also be forced open by pneumatic.
◆Options: air/air,spring/air,pressure from 1bar-6bar
Rotor pump + gearbox, there are three designs:
1) mechanical stepless gearbox, the configuration can adjust speed by hand wheel according to actual requirements of working conditions.
2) Frequency gearbox, the configuration can adjust speed through the frequency converter.
3) fixed output ratio gearbox, this configuration is a certain speed and can not be adjusted.

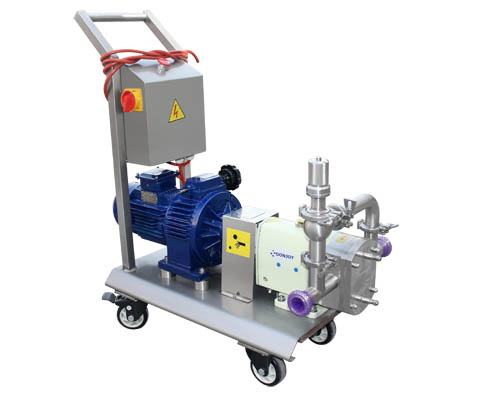

◆Move to any place where pump material at any time.
◆Standard configuration: With console, Lockable mobile plate, Mechanical avariable gearbox
◆Option: Console with built-in converter, frequency conversion motor(For more informtion, Please refer to our lobe pump catalogue)
◆ Maximum flow: 90m3 / H
◆ Maximum pressure: 20bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 750 rpm
◆ Material: ASTM 316L, 1.4404
◆ Inside surface: Ra0.8μm
◆This pump can solve over high pressure problem caused by congestion of pump outlet or other equipment. The device guarantees to keep pressure of pipeline stable and safe in case of loss of material.
◆Note: this device is suitable for low viscosity materials.
◆ Maximum flow: 90m3 / H
◆ Maximum pressure: 20bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 750 rpm
◆ Material: ASTM 316L, 1.4404
◆ Inside surface: Ra0.8μm

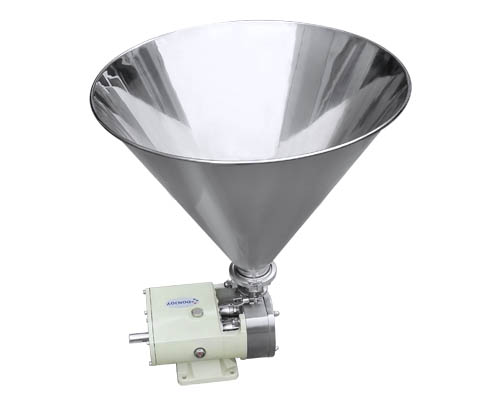

There are two type flange hoppers: Square flange hopper and circular flange hopper. Lobe pump with flange hopper can effectively solve transportation of difficult moving liquid.
◆ Maximum flow: 90m3 / H
◆ Maximum pressure: 20bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 750 rpm
◆ Material: ASTM 316L, 1, .4404
◆ Inside surface: Ra0.8μm
The pump is designed with protective cover, reducing dead angle caused by irregular pump drive. Protective cover can also keep personal safety from motor.
◆ Maximum flow: 90m3 / H
◆ Maximum pressure: 20bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 750 rpm
◆ Material: ASTM 316L, 1.4404
◆ Inside surface: Ra0.8μm
