Valve Positioner

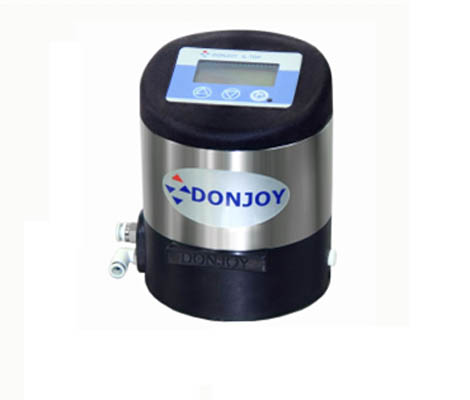

Valve positioner IL TOP

● Intelligent valve positioner, which is mainly used in the fluid process control system, achieves valve flow adjustment control.
● The controller can be fitted to a variety of pneumatic valves, for example, diaphragm valve, divert seat valve, angle seat valve, butterfly valve, ball valve and other valves.
● 0/4 ... 20mA to 0 ... 5 / 10V signal input (standard)
● 0/4 ... 20mA to 0 ... 5 / 10V position feedback output (option)
● Mod bus (RS485)control (option)
● Device NET bus control (option)
● Single-action / double action (option)
● Linear actuator / rotary actuator (option)
● Power: DC.24V
● Air pressure: 5.0-7.0Bar
● Protect class: IP68

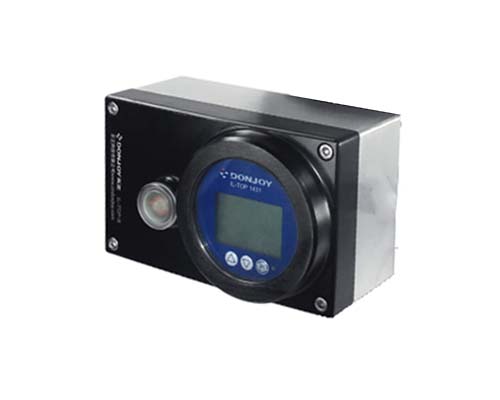

Valve positioner IL-TOP-S

● 0/4 ... 20mA to 0 ... 5 / 10V signal input (standard)
● 0/4 ... 20mA to 0 ... 5 / 10V position feedback output (option)
● Mod bus (RS485)control (option)
● Device NET bus control (option)
● Single-action / double action (option)
● Linear actuator / rotary actuator (option)
● Power: DC.24V
● Air pressure: 5.0-7.0Bar
● Protect class: IP68
●Power supply: DC24V ± 10%
●Application scope: linear actuator 10MM-50mm, rotary actuator 30 °-180
●Aluminum alloy housing
●Big operation screen
●Support manual operation

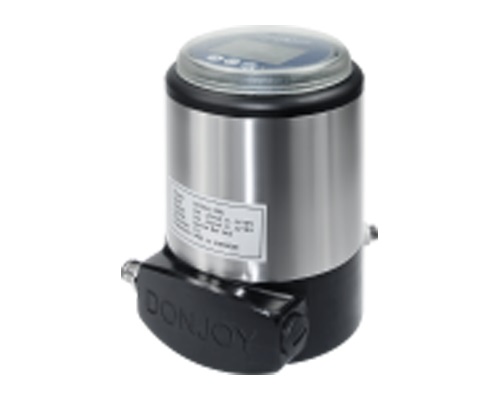

Valve Positioners

● 0/4 ... 20mA to 0 ... 5 / 10V signal input (standard)
● 0/4 ... 20mA position feedback output (option)
● Device NET bus control (option)
● Single-action / double action (option)
● Linear actuator
● Power: DC.24V
● Air pressure: 5.0-7.0Bar
