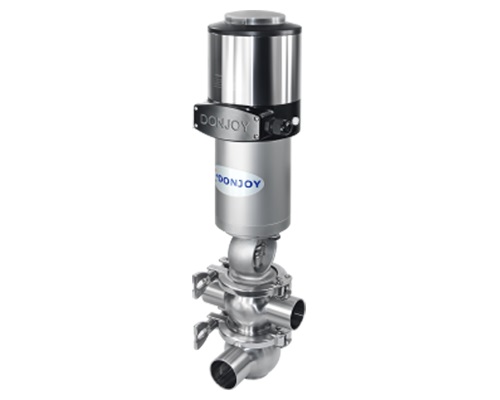

รายละเอียดสินค้า Pneumatic Regulating Valve
◆ Size: DN25-DN100 to 1 "-4"
◆ Material: ASTM304 / 316L, 1.4301 / 1.4404
◆ Working temperature: -10 ℃ to + 120 ℃ (EPDM)
◆ Working pressure: 10bar 145PSI
◆ Compressed air: 4-7bar
◆ Pneumatic actuator connection: G1 / 8 "(BSP)
◆ Voltage: 24V DC ± 10%

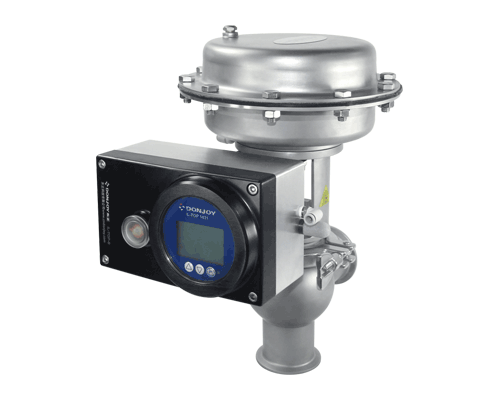

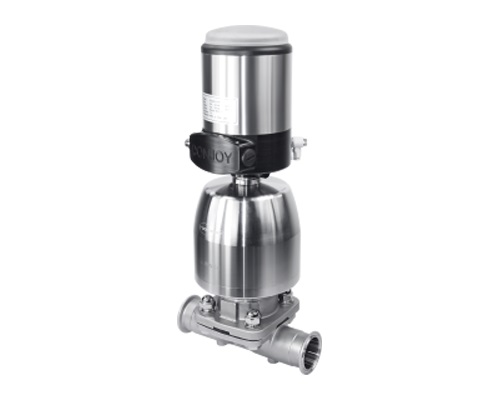

Diaphragm regulating valve is mainly used in biopharmaceutical fluid control system. The valve is completely empty design without dead angle consisting of high purity stainless steel and PTFE material, so it is very suitable for the pipeline system in high-clean requirements. The body structure has various forms and combinations (please refer to the DONJOY diaphragm valve data).
● Regulating valve is a pneumatic proportional valve, whose flow control device is design for dairy,food processing industry, beverage manufacturing, pharmaceutical and fine chemical industry. The most important application is pressure control, flow control, liquid level and so on.
● Pneumatic control valve, controlled by positioner to achieve flow control (PD) may also adopt self position and flow adjustment (PID) by intelligent process controller.

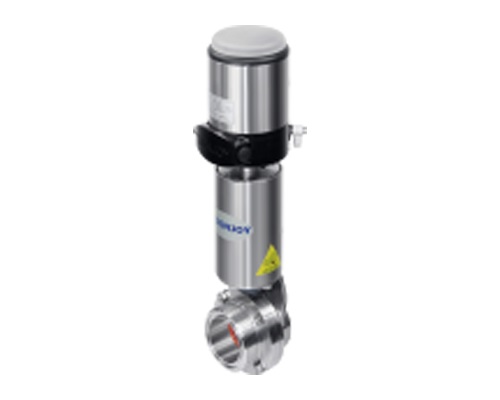

Regulating butterfly valve is mainly used in the process control system, which achieves valve flow adjustment control and valve position feedback.
Size: DN25-DN300,1 "-12"
Maximum temperature: 130 ℃
Maximum pressure: 10bar
Material: ASTM T304 / T316L, 1.4301 / 1.4404
Certificate: PED-97/23 / EC; FDA177.2600

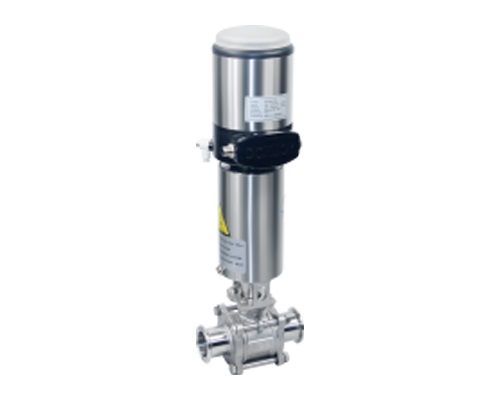

Regulating type ball valve is divided into two way, three way, tank bottom ball valveand so on, whose flow control device is design for dairy,food processing industry, beverage manufacturing, pharmaceutical and fine chemical industry. The most important application is pressure control, flow control, liquid level, etc.
● Pneumatic regulating valve, controlled by positioner to achieve flow control (PD) may also adopt self position and flow adjustment (PID) by intelligent process controller.
● Size: 1 "-4", DN25-DN100
● Materials: 304 / 1.4301,316L / 1.4404
● Maximum temperature: -30 to 150 ℃
● Maximum pressure: vacuum to 10bar
● Pneumatic regulating valve, controlled by positioner to achieve flow control (PD) may also adopt self position and flow adjustment (PID) by intelligent process controller.
● Size: 1 "-4", DN25-DN100
● Material: 304 / 1.4301,316L / 1.4404
● Maximum temperature: -30 to 150 ℃
● Maximum pressure: vacuum to 10bar
