รายละเอียดสินค้า Electric Regulating Valve
● This electric diaphragm regulating valve is a kind of electric sanitary diaphragm valves, which is widely used in the food processing industry, beverage production, pharmaceuticals and fine chemical industry.
Analog signal input: 0 ... 5 / 10V
Size: 1 "-4", DN25-DN100
Material: 316L / 1.4404
Pressure: 10Bar
Temperature: -10 to 150 ℃, meet CIP / SIP sterilization and cleaning.
Surface: Ra≤0.4μm

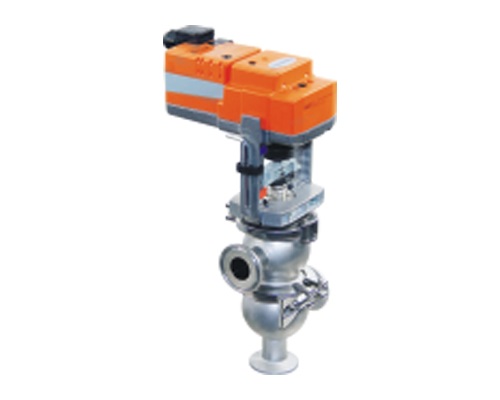

The electric divert seat valve has torque, stroke, self adaptive function. It freely adjusts the opening and closing direction, which is used in a variety of automatic control systems.
Electric divert seat valve is divided into two designs: 1) electric regulating divert seat valve; 2) electric switching divert seat valve.
Size: 1 "-DN20 .... 4" -DN100
Material: 316L, 304
Pressure: Vacuum -10bar
Temperature: 130 ℃
◎ Standard switching type (B-type) makes valves open and close operations by switching circuit, meanwhile outputs a group of active contacts signal to indicate that valve is fully open or fully closed.
◎ Smart regulating type (A-type) realizes intelligent regulation and control through receiving a standard output signal 4-20mA.DC, 0-10V.DC or 1-5V.DC from computer or industrial instrument as well as outputs 4-20mA.DC standard feedback signal.
◎ Standard switching type (B-type) makes valves open and close operations by switching circuit, meanwhile outputs a group of active contacts signal to indicate that valve is fully open or fully closed.
◎ Smart regulating type (A-type) realizes intelligent regulation and control through receiving a standard output signal 4-20mA.DC, 0-10V.DC or 1-5V.DC from computer or industrial instrument as well as outputs 4-20mA.DC standard feedback signal.
◎ Operating time from 7s to 100S
