Manual Reversing Valve

pneumatic reversing globe valve+ control unit

● Power: DC 24V ± 10%
● Single acting (standard), double acting (option)
● Self-tuning Valve position feedback function
● Supports analog signal (4-20mA) & electrical (DC24V) Output
● Support for AS-I BUS
● Supports manual and automatic operation

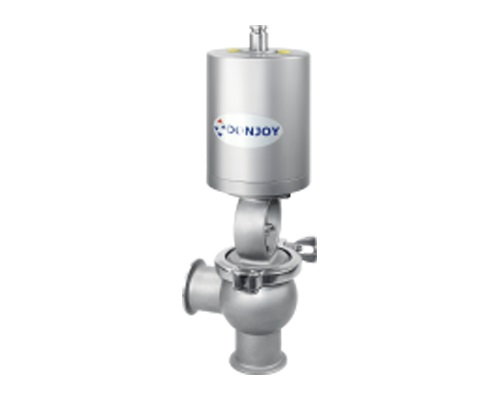

pneumatic reversing globe valve + steam sterilization

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Certificate 3-A-53-06, PED / 97/23 / EC, FDA177.2600

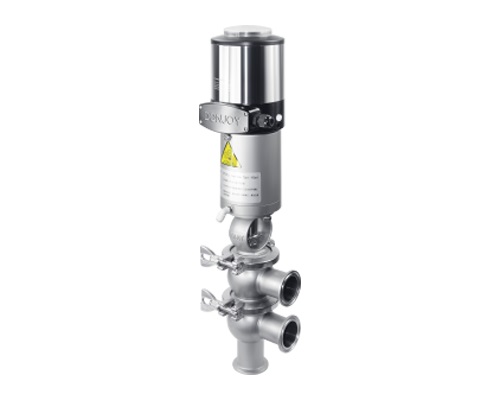

pneumatic reversing globe valve

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600

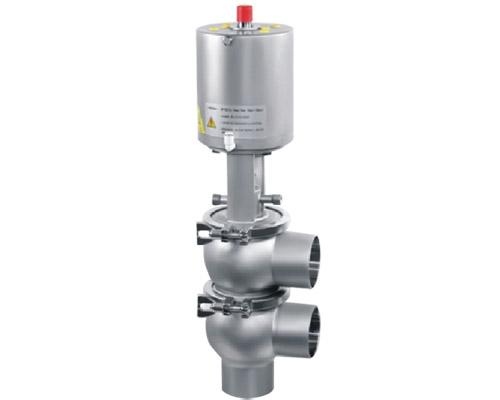

pneumatic reversing globe valve+Valve position regulator

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Configuration options: position sensor, a control unit
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600

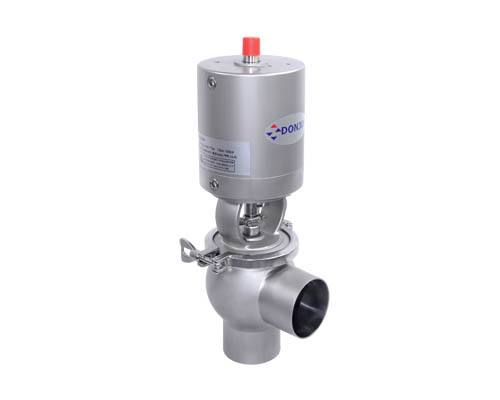

Reversing globe valve + slow device

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Configuration options: position sensor, a control unit
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600

Aseptic diaphragm reversing valve

● Size: DN25 / 1 & quot; to DN100 / 4 & quot;
● Temperature: 130 ℃
● Pressure: 10bar
● Air source: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra & lt; 0.8 & mu; m
● Surface treatment: sandblasting, polishing
● Configuration options: position sensor, a control unit
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600

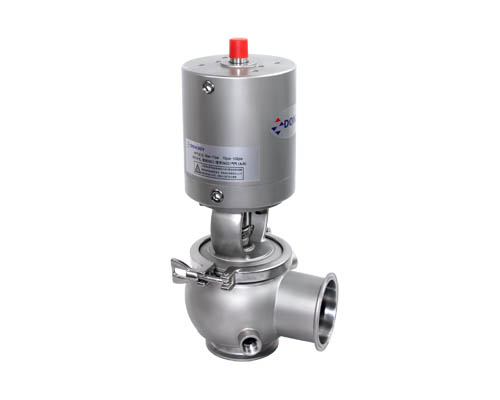

Globe valve+Thermal insulation jacket

●Size：DN25/1" to DN100/4"
●Temperature：130℃
●Pressure：10bar
●Air supply：4-7bar
●Material：ASTM 304/1.4301，316L/1.4404
●Gaskets：EPDM、FPM、HNBR，FDA177.2600
●Inner surface treatment：Ra<0.8μm
●Outer surface treatment：Sandblasting, polishing
●Configuration options: position sensor, control unit
●Certificate：3-A-53-06，PED/97/23/EC,FDA177.2600

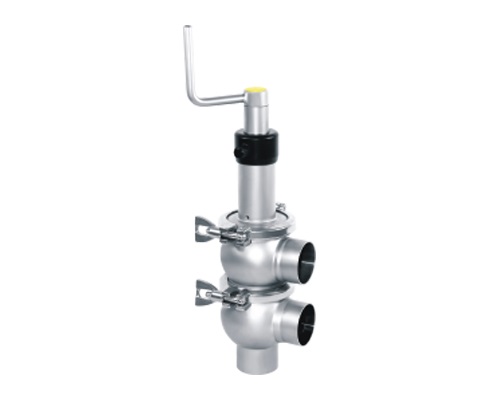

Manual reversing valve

●Size：DN25/1"to DN100/4"
●Temperature：130℃
●Pressure：10bar
●Air supply：4-7bar
●Material：ASTM 304/1.4301，316L/1.4404
●Gaskets：EPDM、FPM、HNBR，FDA177.2600
●Inner surface treatment：Ra<0.8μm
●Surface treatment: sandblasting, polishing
●Configuration options: position sensor, control unit
●Certificate：3-A-53-06，PED/97/23/EC,FDA177.2600

Diaphragm reversing valve

●Size：DN25/1"to DN100/4"
●Temperature：130℃
●Pressure：10bar
●Air supply：4-7bar
●Material：ASTM 304/1.4301，316L/1.4404
●Gaskets：EPDM、FPM、HNBR，FDA177.2600
●Inner surface treatment：Ra<0.8μm
●Surface treatment: sandblasting, polishing
●Configuration options: Position Sensor
●Certificate：3-A-53-06，PED/97/23/EC,FDA177.2600

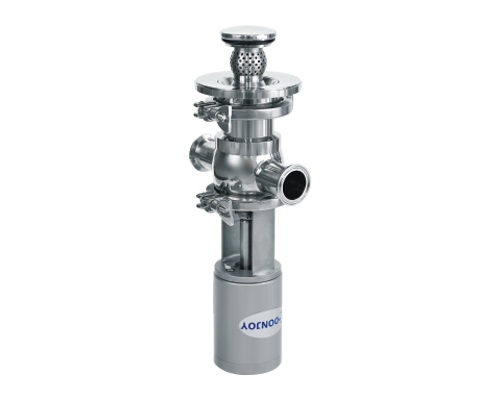

Cleaning drain valve

The valve, mainly solves problem that cleaning ball long-term bubbles in the medium of the dead leg so that easy to produce bacteria to pollute media. Cleaning drain valve begins cleaning when it opens. It prevents cleaning ball and from medium to avoid the dead angle.
Cleaning drain valve, is designed for pipeline and tank cleaning equipment online cleaning line.

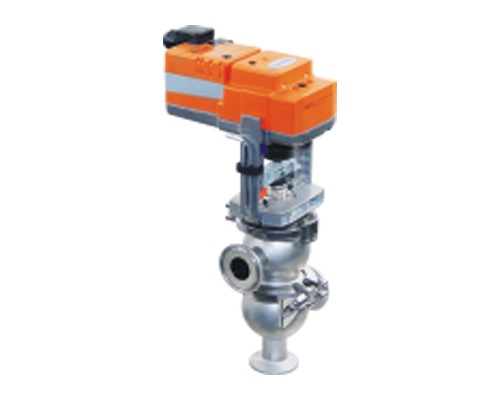

Electric globe reversing valve

Power Supply：DC24V/AC110V/220V
Operation function：
Switch type: input and output feedback signals
Regulating type: signal input 0-10V, feedback 2-10V
Self-adaptive valve setting
Support manual operation
Support the human body sensors or sensing of objects, activate the valve to open or close
Stroke time: ON to OFF =90S，150S
Size：1"-4",DN25-DN100

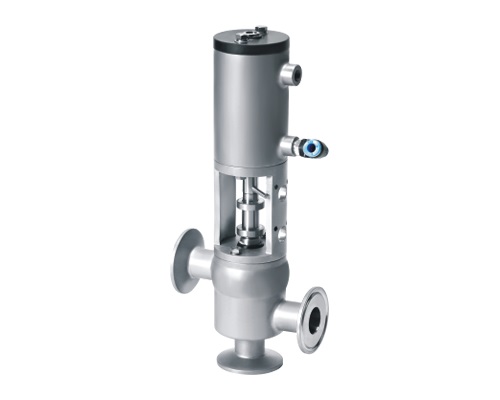

Mini reversing valve

◆Size:1/2"-3/4",DN15-DN20
◆Material：304/316L
◆Seal-in-one design
◆Meet the high frequency opens and closes
◆No dead angle designed to meet the requirements of 3A-85-00
◆Seal: FDA177.2600
◆Connection : Clamp, weld, thread, DIN、SMS、ISO
