รายละเอียดสินค้า Sanitary Ball Valve
Sanitary Ball Valves

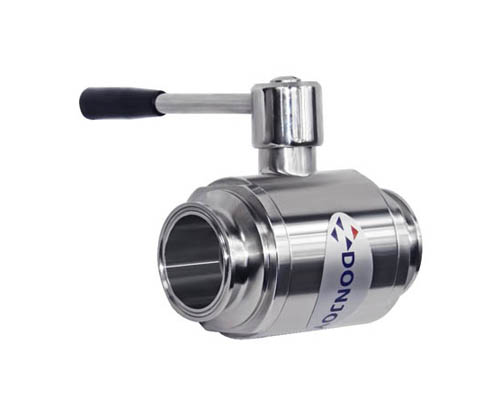

Straight Ball valve
●Size：1/2"-4",DN10-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Smaller and lighter than the other valve
●Operating torque is small
●Gaskets:PTFE FDA 177.1550
●Whatever the connection is, it does not change the total length of the valve
●Connection : Clamp, weld, thread, Flange, DIN、SMS、RJT、FIL
●Can be equipped with pneumatic actuators, electric actuators
●Material contact parts:AISI，304/316L
●Certificate：PED/97/23/EC

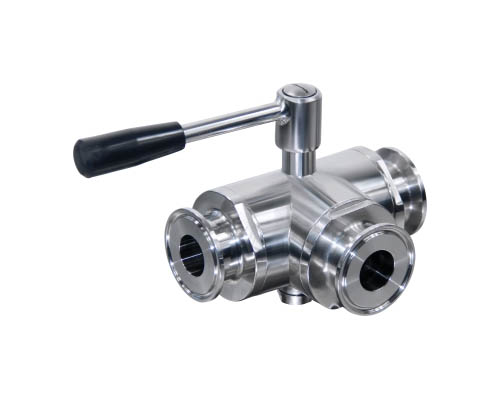

Three-way ball valve
●Size：1/2"-4",DN10-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Smaller and lighter than the other valve
●Operating torque is small
●Gaskets:PTFE FDA 177.1550
●Whatever the connection, do not change the total length of the valve
●Connection : Clamp, weld, thread,Flange,DIN、SMS、RJT、FIL
●Can be equipped with pneumatic actuators, electric actuators
●Material contact parts:AISI，304/316L
●Certificate：PED/97/23/EC
Proportional regulating ball valve
Pneumatic control ball valve controls flow rate adjusted valve through IL-TOP (Positioner). Also intelligent process controller can control position and flow rate(PID).
●Size：1"-4",DN25-DN100
●Material：304/1.4301，316L/1.4404
●Max. temperature：-30℃ - 150℃
●Max.Pressure：Vacuum to 10bar
●0/4...20mA to 0...5/10V（standard）
●0/4...20mA Position feedback output(option)
●Device NET Bus control（option）
●Single-action / double action（option）
●Connection : Clamp, weld, thread,flange，DIN SMS RJT ISO
●Certificate：3-A-68-00，FDA 177.1550,PED/97/23/EC

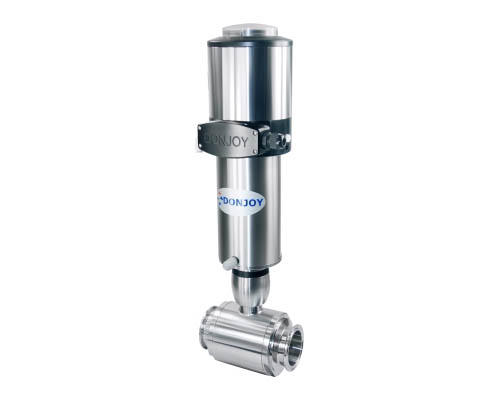

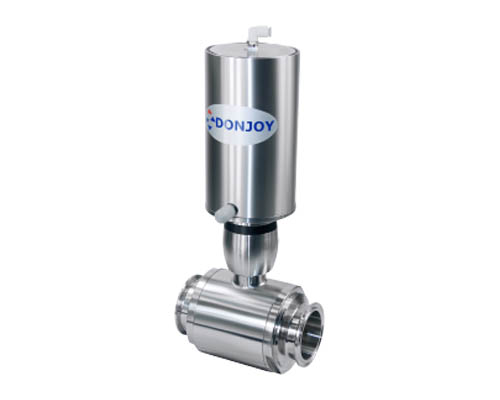

Pneumatic straight ball valve
● Size：1"-4",DN25-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Gaskets:PTFE FDA 177.1550
●No matter what kind of liquid flow is, the handle can be mounted on the side of the valve body
●Whatever the connection is, it does not change the total length of the valve
●Connection : Clamp, weld, thread,flange,DIN、SMS、RJT、FIL
●Material contact partsAISI，304/316L
●Other parts AISI 304
●Certificate：PED，97/23EC

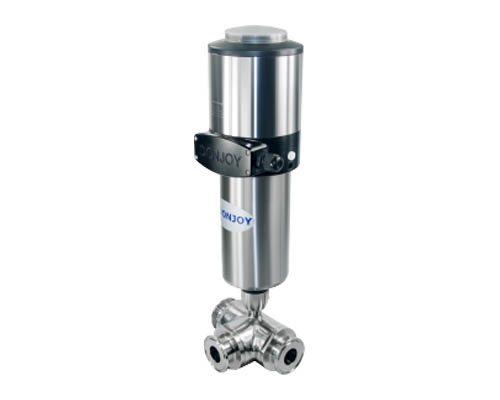

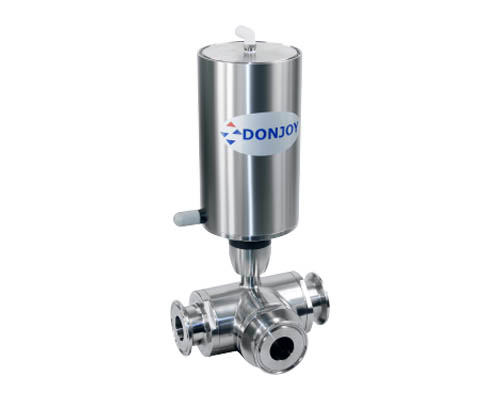

Pneumatic three way ball valve
●Size：1"-4",DN25-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Gaskets:PTFE FDA 177.1550
●No matter what kind of liquid flow is, the handle can be mounted on the side of the valve body
●Whatever the connection is, it does not change the total length of the valve
●Connection : Clamp, weld, thread,flange,DIN、SMS、RJT、FIL
●Material contact partsAISI，304/316L
●Other parts AISI 304
●Certificate：PED，97/23EC
Pneumatic ball valve+C-TOP
●Size：1"-4",DN25-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Gaskets:PTFE FDA 177.1550
●No matter what kind of liquid flow is, the handle can be mounted on the side of the valve body
●Whatever the connection is, it does not change the total length of the valve
●Connection : Clamp, weld, thread,flange,DIN、SMS、RJT、FIL
●Material contact partsAISI，304/316L
●Other parts AISI 304
●Certificate：PED，97/23EC

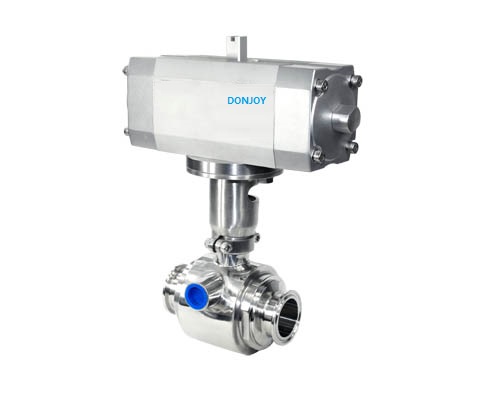

Ball valve + thermal insulation jacket
Both manually or automatically operated valve are mainly used in processing beverages, wine, oil refining, cosmetics and chemical industries.
Thermal insulation ball valve, the valve housing is designed with a jacket in order to achieve optimum heat transfer. It can protect the easy solidification sensitive medium from solidation, such as chocolate, margarine or similar media.

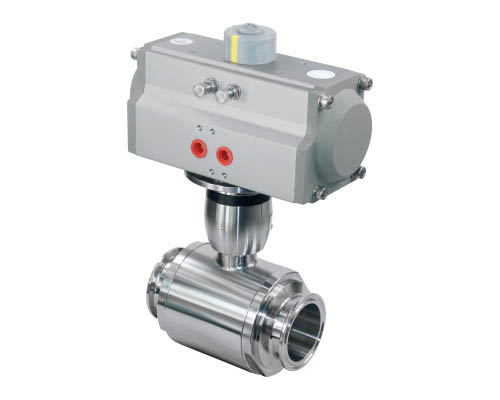

Horizontal pneumatic straight ball valve
●Size：1"-4",DN25-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Gaskets:PTFE FDA 177.1550
●No matter what kind of liquid flow is, the handle can be mounted on the side of the valve body
●Whatever the connection is, it does not change the total length of the valve
●Connection : Clamp, weld, thread,flange,DIN、SMS、RJT、FIL
●Material contact partsAISI 304/316L
●Other parts AISI 304
●Certificate：PED，97/23EC

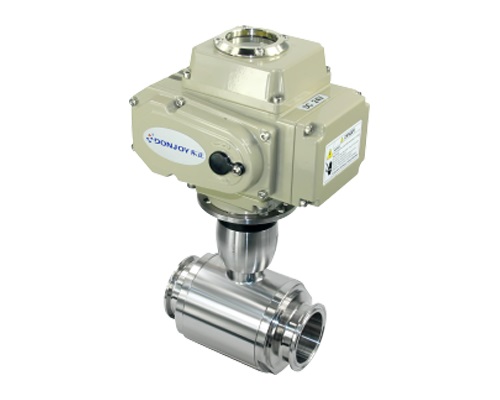

Electric straight ball valve
Both manually and automatically operated valve are mainly used in processing beverages, wine, oil refining, cosmetics and chemical industries.
●Size：1"-4",DN25-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Certificate：PED，97/23EC

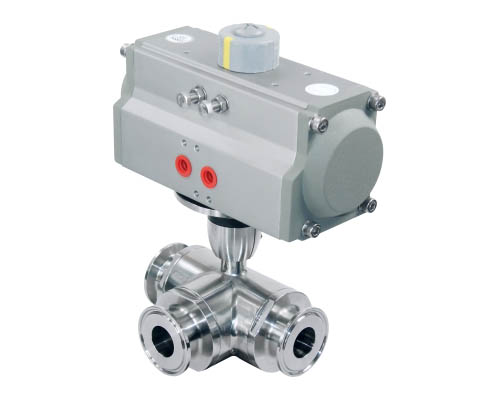

Horizontal pneumatic three way ball valve
●Size：1"-4",DN25-DN100
●Temperature：-20℃ to 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Gaskets:PTFE FDA 177.1550
●Whatever the connection is, it does not change the total length of the valve
●Connection : Clamp, weld, thread,flange,DIN、SMS、RJT、FIL
●Material contact parts AISI，304/316L
●Other parts AISI 304
●Certificate：PED，97/23EC

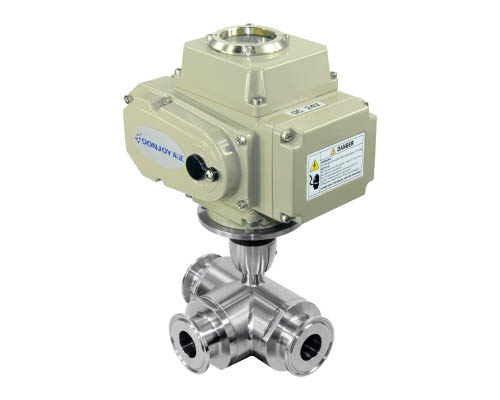

Electric ball valve
●Body Structure: straight, 3 way
●Size：1"-4",DN25-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Certificate：PED，97/23EC
