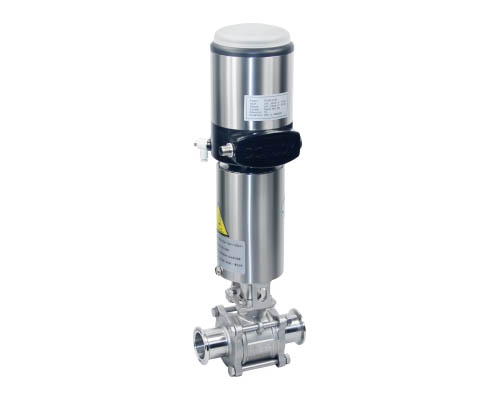

รายละเอียดสินค้า Non-Retention Ball Valve
The valve is full inclusive ball seat design that solves the problem of the liquid holdup of the valve cavity, the ball valve is suitable for bio pharmaceutical engineering.
Stem seal in patented design and spring in compensation type design, have advantage of long life, low torque, long-term use of high temperature 150 ℃
Signal Input：0/4-20mA，0-5/10V
Signal feedback output：0/4-20mA，0-5/10V
Supports bus：DEVICE NET BUS
Support manual operation
Single key self-tuning function
Power Supply：DC 24V ±10%
Size： 1/2"-4",DN10-DN100
Temperature：-30 ℃-150℃
Pressure：10bar
Material：304/1.4301,316L/1.4404
Surface：Ra≤0.5μm
Gaskets:FDA 177.1550
Connection : Clamp, weld, thread,DIN，SMS，ISO，IDF，BPE，RJT
No matter what the connection mode is, the valve body can be replaced
Certificate：3-A-68-00，PED/97/23/EC
Size：1"-4",DN25-DN100
Material：1.4301/304,316L/1.4404
Gaskets：PTFE,TFM(FDA 177.1550)
Max. temperature：-20℃ - 150℃(Standard)-30℃ - 200℃(Option)
Pressure:10-30bar(Depending on seal material and temperature)
Operating modes:manual, pneumatic, electric
Surface finishing:Internal surface Ra0.6μm, external surface sand blast
Certificate：3-A-68-00，PED/97/23/EC
Size：1"-4",DN25-DN100
Material：1.4301/304,316L/1.4404
Gasket：PTFE,TFM(FDA 177.1550)
Max. temperature：-20℃ - 150℃(Standard)-30℃ - 200℃(Option)
Pressure:10-30bar(Depending on seal material and temperature)
Manual, pneumatic, electric Exchange
●Without professional tools that disassembling the valve
●Small operating torque
●Gaskets:FDA 177.2600
●Connection : Clamp, weld, thread,DIN、SMS、ISO、IDF、BPE、RJT
●No matter what the connection mode is, the valve body can be replaced, the total length without changing the valve
Certificate：3-A-68-00，PED/97/23/EC
Size：1"-4",DN25-DN100
Material：1.4301/304,316L/1.4404
Gasket：PTFE,TFM(FDA 177.1550)
Max. temperature：-20℃ - 150℃(Standard)-30℃ - 200℃(Option)
Pressure:10-30bar(Depending on seal material and temperature)
Operating modes:manual, pneumatic, electric
Surface finishing:Internal surface Ra0.6μm, external surface sand blast
Certificate：3-A-68-00，PED/97/23/EC
Configuration Controls：process controller/valve positioning ，0/4....20mA,0 5/10V(see controller directory)(Option)
Top of the valve control unit，AS-1 Device Net bus communication terminal connection(Option)
position sensor PNP NPN(Option)

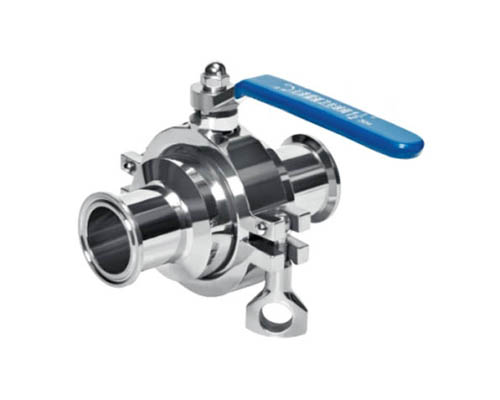

●Size：1/2"-3",DN10-DN80
●Material：304/1.4301,316L/1.4404
●Surface：Ra≤0.5μm
●Temperature：-30℃ - 150℃
●Pressure：10bar
●Valve combination clamp connection
●Without professional tools that disassembling the valve
●Small operating torque
●Gaskets:FDA 177.2600
●Connection : Clamp, weld, thread, DIN、SMS、ISO、IDF、BPE、RJT
●No matter what the connection mode is, the valve body can be replaced without changing the length of valve

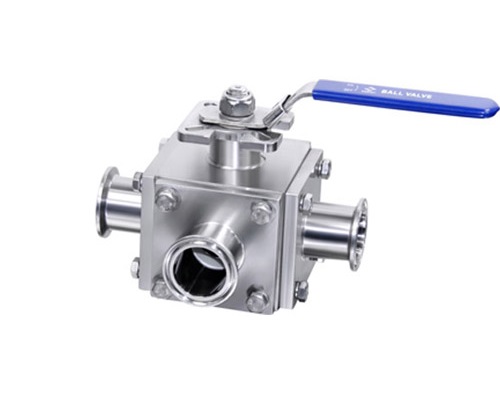

The hygienic design of the valve is widely used in the field of food processing, beverages, fruit juices, wine, biopharmaceutical with vary flexible body combinations, for example, L-Port or T-Port which can be interchangeable on-site Inlet and outlet to be any combination of changes for guaranting zero dead angle and no retention.
Electric ball valves is mainly used in the processing and beverage, wine, oil refining, cosmetics and chemical industries.
●Body Structure: straight way,3 way
●Size：1"-4",DN25-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Certificate：PED，97/23EC

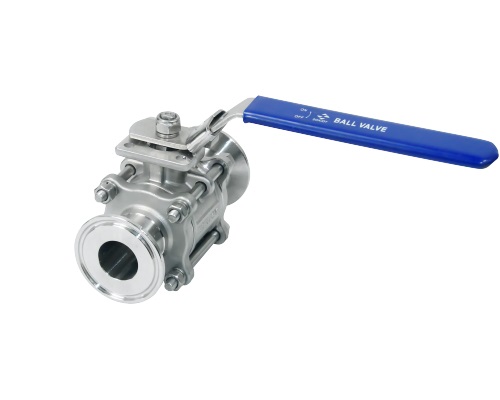

Size： 1/2"-4",DN10-DN100
Temperature：-30℃ - 150℃
pressure：10bar
Material：304/1.4301,316L/1.4404
Surface：Ra≤0.5μm
Gasket:FDA 177.1550
Connection : Clamp, weld, thread，DIN，SMS，ISO，IDF，BPE，RJT
